Modeling in AP Physics C Mechanics – Paradigms

A paradigm is a “model, pattern, example, exemplar, template, standard, prototype, archetype.” In modeling instruction, they are typically a demonstration or lab setup that serves to focus student attention on what is important in the unit. Paradigms are presented as the subject of a student-designed lab that is usually done at the beginning of the unit, and serves to help develop the conceptual model(s) for the unit.

If in-person school is not possible, I intend to make short videos showing the data collection of each lab. Students will “collect” the data from the video and analyze it at home.

Next year I will be teaching Mechanics as a full-year course, so there should be enough time to do all (or at least most) of these labs.

Unit 1:Kinematics

Lab 1 – Introductory lab – Three linear paradigms in one lab

Constant Velocity ModelBlinky Buggy toy moves with constant velocity

Constant Acceleration Model (possibly with vectors) – Physics Fan cart moves with constant acceleration. Fan may be modified by changing angle and speed.

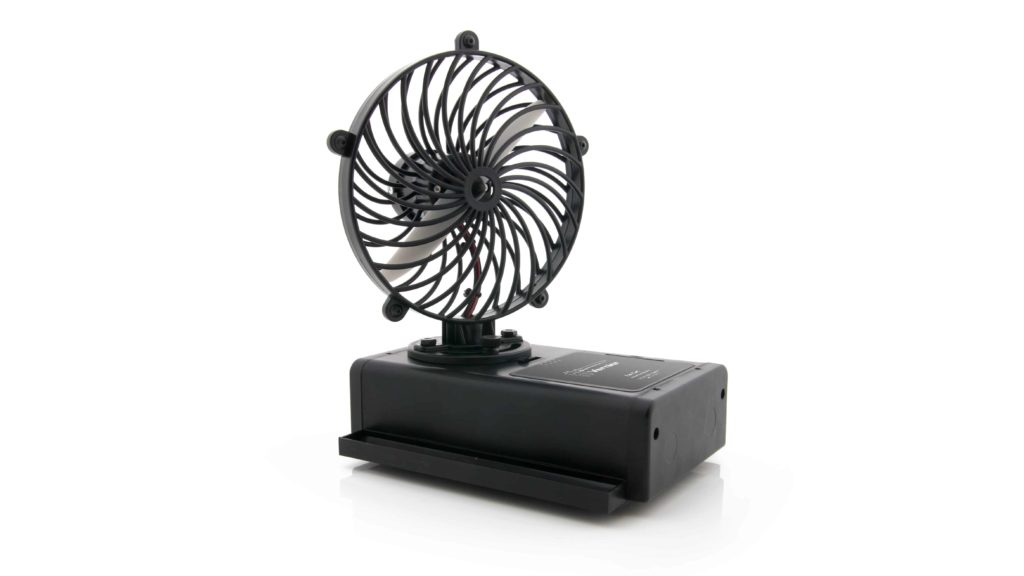

Vernier Fan Cart

Non-constant Acceleration Model – Sliding Chain (over a pulley) breaking the constant acceleration model.

Lab 2 – Another paradigm later on:

Circular Motion Model – (The Knight Textbook works a bit of circular motion into 2-d kinematics) – Rotating wheel slowing with constant acceleration. Probably use a Vernier Rotary Motion Sensor with an attachment. Another possibility is a bicycle wheel.

Unit 2: Newton’s Laws of Motion

Lab 3 – Introductory lab

Constant Net Force Model – Fan Cart (with fan directed at angles for vectors). Develop Newton’s Second Law.

Labs 4 and 5 – Later on

Connected Objects Model – Atwood’s Machine, collect a data set using the materials from which the gravitational field strength of Earth can be derived.

Atwood Machine
Pasco Atwood’s Machine

Non-uniform Force ModelFalling Coffee Filters (Is the drag force proportional to  v or v2 ?)

Unit 3: Work, Energy, and Power

Lab 6 – Introductory lab

Energy Transfer Models – Work on a spring transfers to kinetic energy (with Pasco Spring Cart Launcher); Work on Earth’s g-field transfers to kinetic energy. Collect data with Dynamics Carts, Dual-Range Force Sensors and Motion Detectors

Pasco Spring Cart Launcher

Lab 7 – Later on

Energy Dissipation Model – Ball Bounce Lab. What does the position vs. time data of a bouncing ball tell us about energy dissipation?

Bouncing Ball Position-time data

image from Frank Noschese’s Blog

Unit 4: Systems of Particles and Linear Momentum

Lab 8 – Introductory lab

Impulse-Momentum Transfer Model – Force-time during a collision and change in Momentum. Using dynamics carts,  Vernier Bumper-Launcher Kit (and maybe Pasco Spring Cart Launcher)

Bumper and Launcher Kit - Vernier
Vernier Bumper Launcher Kit

Lab 9 – Later investigation

Modeling Collisions – Dynamics Cart collisions in one dimension

Unit 5: Rotation

Lab 10 – Introductory Lab

Extended Object Model – Rotational Inertia and Angular Acceleration. Vernier Rotary Motion Sensor and accessory kit again.

Vernier Rotary Motion Accessory Kit

Unit 6: Oscillations

Lab 11 – Introductory Lab

Simple Harmonic Oscillator Model – Dependent variables that affect period/frequency of a mass-spring system. I like Pasco Springs for this. Equal Length and Hooke’s Law Set. They look the same, but are different:

Pasco Equal Length Spring Set

Lab 12 – Later on

Physical Pendulum Model – Dependent variables that affect period/frequency of an extended object pendulum. Vernier Rotary Motion Sensor and Accessory kit, again.

Unit 7: Gravitation

Lab 13 –  Introductory Lab

Universal Gravitation Model  – Cavendish Balance (classroom demonstration, I don’t have the money to buy a balance that provides quantitative results). Thinking of either setting up my own for demo purposes, or showing the YouTube videos of other’s.

Questions or comments? Other ideas? Please share!
